ENGINE

Type

Liquid-cooled, 4-stroke DOHC inline four

Displacement

1000cc

Bore and stroke

76mm x 55.1mm

Compression Ratio

11.7:1

Max. Power Output

115.6kW @ 11,000rpm

Max. Torque

107Nm @ 9,000rpm

Noise Level

L urban 74.1dB L wot 78.9dB

Oil Capacity

Upper 3.5L/ Lower 3.0L

FUEL SYSTEM

Carburation

PGM FI electronic fuel injection

Fuel Tank Capacity

17L (inc reserve)

CO2 Emissions (WMTC)

136g/km

Fuel Consumption (WMTC)

5.9L/100km / 16.9km/L

ELECTRICAL SYSTEM

Battery Type

AGM

Battery Capacity

12V 6.3AH

DRIVETRAIN

Clutch Type

Wet multiplate, Assisted slipper clutch

Transmission Type

Six-speed Manual

Final Drive

Chain

FRAME

Type

Twin Spar

CHASSIS

Dimensions (L´W´H)

2,140mm x 790mm x 1,085mm

Wheelbase

1,455mm

Caster Angle

25°

Trail

98mm

Seat Height

809mm

Ground Clearance

135mm

Kerb Weight

212kg

Turning radius

2.8m

SUSPENSION

Type Front

Showa 41mm SFF-BP USD forks 118mm travel

Type Rear

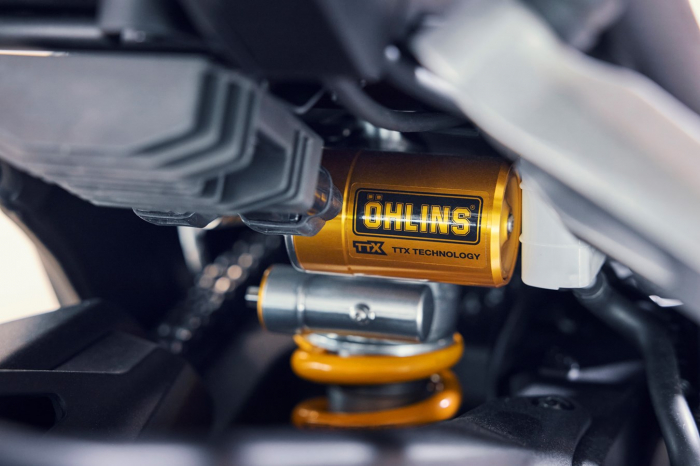

Ohlins Monoshock damper, Prolink swingarm, 139mm travel

WHEELS

Type Front

Multi-spoke cast aluminium

Type Rear

Multi-spoke cast aluminium

Rim Size Front

17M/C X MT3.50

Rim Size Rear

17M/C X MT5.50

BRAKES

ABS System Type

Dual-channel

Type Front

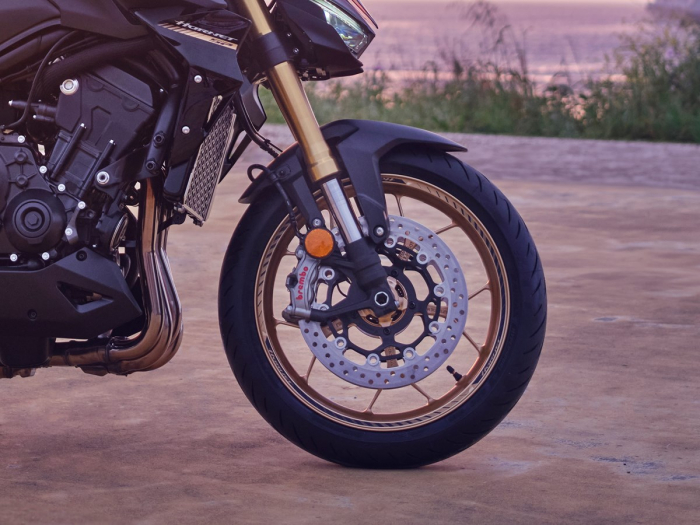

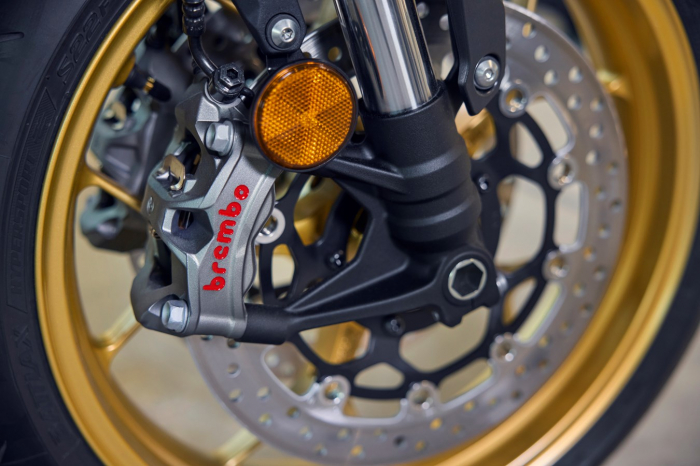

Dual 310mm floating disc with Brembo Stylema radial mounted four piston calipers

Type Rear

Single 240mm disc with single piston caliper

INSTRUMENTS & ELECTRICS

Instruments

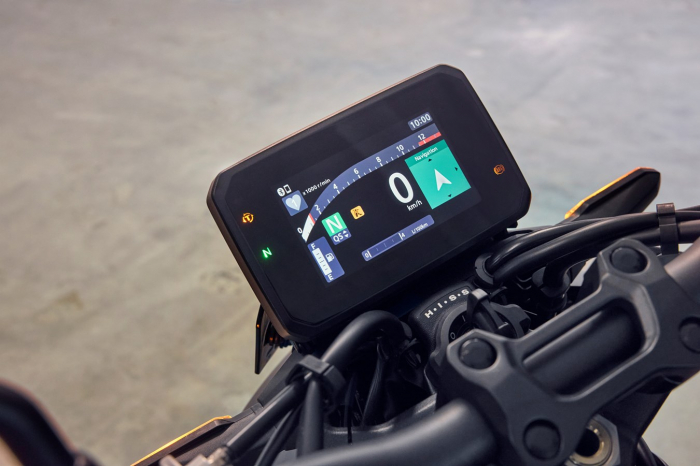

Five-inch TFT Meter with customisable layout, including speedometer, tachometer, clock, gear position, upshift indicator

Headlight

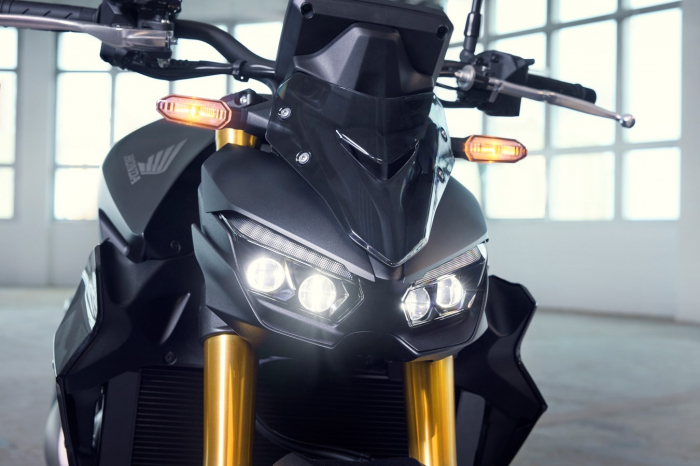

LED

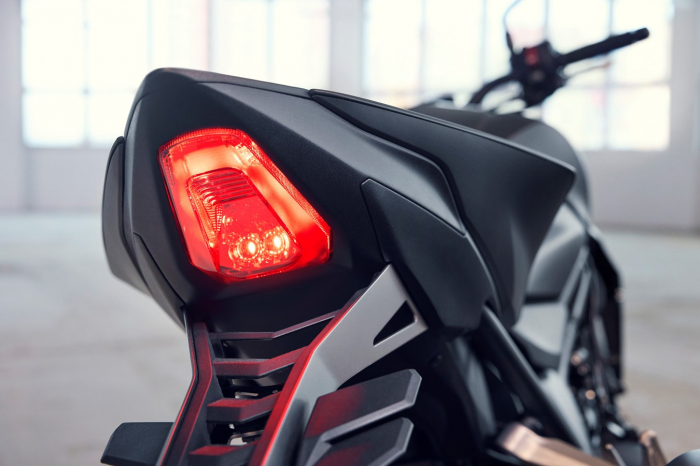

Taillight

LED

Connectivity

Honda RoadSync

USB

Yes

Quickshifter

Yes

Security System

HISS (Honda Intelligent Security System)

Riding Mode

Standard, Rain, Sport, 2x User

HSTC

Yes

Wheelie Control

Yes

Additional Features

ESS
